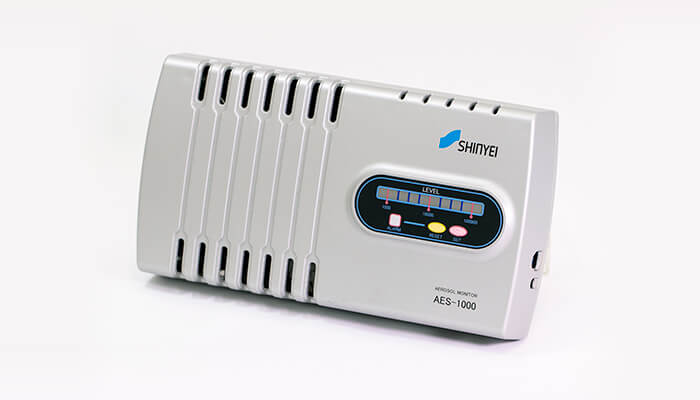

Aerosol Monitor AES-1000-05N
Highly advanced sensor developed for industrial applications such as clean rooms, finishing operations and painting. Air-bourne particles as small as 0.5 microns can be detected. The monitor has an easy to read display and alarm features along with Ethernet capabilities.
The Aerosol Monitor which has easy-to-read display, and link to Ethernet system, can materialize simplified monitoring of Particulates at multiple location.
Features
- Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 - ISO8 / Class 100,000.
- Unique air sampling method using "heater" to generate updraft, preventing choked flow. Suction pump is not necessary.
- Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.
- Link to Ethernet system with purpose of monitoring at multiple location.
- Long life laser. 20,000 h
- Compact and light, easy installation. Low cost
Description and Functions

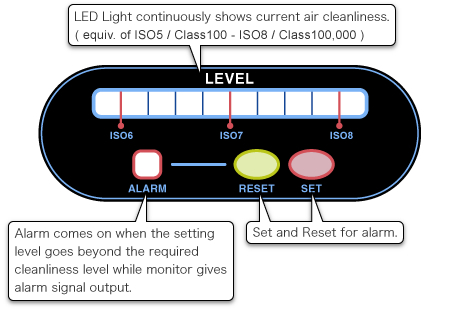

Display

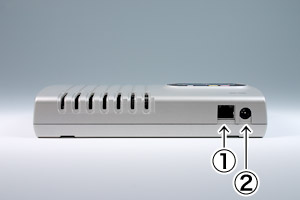

The illustration below the body
- ①LAN terminal
Data can be collected by connecting a LAN cable and connecting to a hub or PC in the network. - ②AC power input terminal
Connect the terminals through the supplied AC adapter.

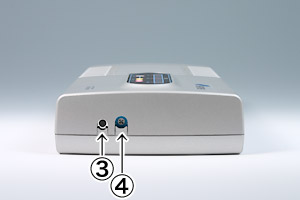

Description on the right side of the body
- ③Reset switch
This switch is used to force the main body operation back to the initial state (after turning on the power). - ④Rotary switch
This switch is used to set the alarm output point. Use a screwdriver to rotate the setting.

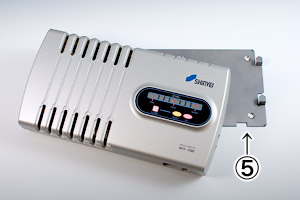

The illustration below the body
- ⑤Wall mounting device
Designed for easy wall mounting during installation.
Specification
| Product Name | Aerosol Monitor |
|---|---|
| Model | AES-1000-05N |
| Display | 10 x LED lights shows equivalent of Class 100 ~ Class 100,000 100(ISO5)-1,000(ISO6)-2,000-3,000-5,000-10,000(ISO7)-20,000-30,000-50,000-100,000(ISO8) |
| Detection Method | Light Scattering |
| Sensor | Shinyei AES1-05N Aerosol Sensor |
| Min. Detectable Size | 0.5µm |
| Air Sampling method | Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes |
| Cleanliness Class | From level of equiv. of ISO5 / Class 100 to ISO8 / Class 100,000 |
| Alarm Display | Alarm LED light comes on when reaching to setting level |
| Alarm Output | TTL open collector output in sync with alarm display |
| Interface | Ethernet x 1 port |
| Power Supply | DC12 V ± 10 % 500 mA |
| Operating Temp/Humidity | 0 °C to 40 °C, 30%RH to 80%RH |
Applications
Any place where you need simplified cleanliness level monitoring
