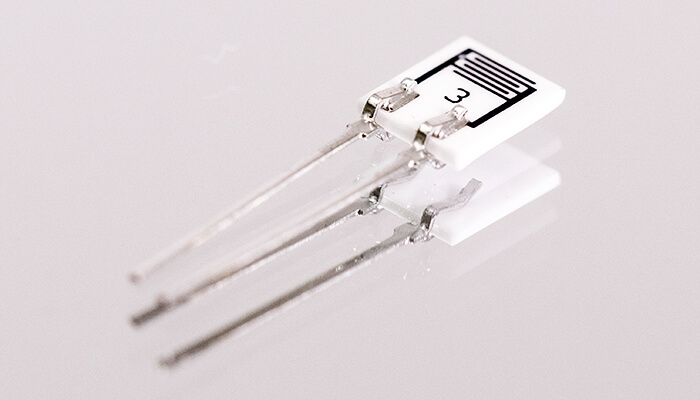

Small Humidity Sensor CL-M53R
SHINYEI resistive type humidity sensor CL-M53R is a standard model and used for a variety of applications.
CL-M53R consists of simple structure and its resistance value logarithmically changes in response to relative humidity. It offers highly accurate sensing and long-term stability by low cost.
Features
- Small and light-weight
- Wide humidity Extremely Low cost range
- Outstanding repeatability
- Low hysteresis
- Pb free - good for environment
specification
| Model | CL-M53R |
|---|---|
| Power supply | 0.2W(max) |
| Supply Voltage | AC5.0V(max) |
| Operating Temperature Range | 0～60℃ |
| Operating Humidity Range | 20 to 95%rh |
| Operating Frequency Range | 500Hz to 2kHz |
| Humidity Measurement Accuracy | ±5%rh (at 25℃ 60%rh, 1kHz 1VAC) |
Applications
Copying machine, Printer, Desktop temperature and humidity monitor, Weather-station, Clock, Air-conditioner, Humidifier, Dehumidifier, dryer, humidifying air cleaner
