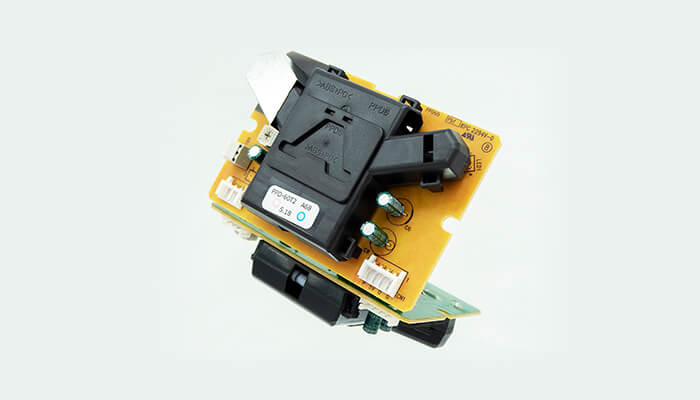

Particle Sensor Unit PPD60PV-T2
IAQ (indoor air quality) at a glance! Particle sensor to detect air-bourne particles in a room. It is sensitive to dust, particles and cigarette smoke which can trigger many allergic symptoms.
Based on the light scattering method, same as particle counters, it detects air borne particles from cleanliness class 100,000 - 1,000,000.
Features
- Easily detects the particles sized over 0.5µm (approx).
- Air is self-aspirated by the air current generation mechanism with a built-in heater.
- Easy maintenance. Sustainable high sensitivity.
- Dual output of Pulse and analog Voltage.
Specification
| Model | PPD60PV-T2 |
|---|---|
| Detectable particle size | approx. 0.5μm and larger |
| Supply Voltage | 5VDC |
| Operating Temperature | 0 to 45deg.C |
| Operating Humidity | 95%rh or less (No Condensation) |
| Output method | Analog(Voltage), Digital(Pulse) |
| Dimensions | 88(W) × 60(H) × 20(D)mm |
| Weight | 36g (approx.) |
Applications
Environment monitoring of cleanliness class 100,000 to 1,000,000.
