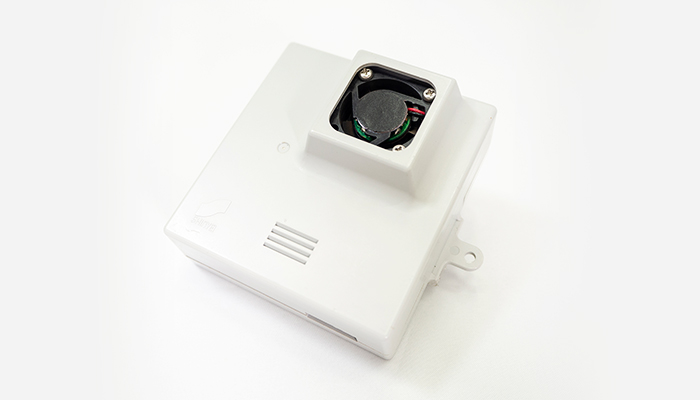

Pollen Sensor PS2
Pollen Sensor - PS2 detects the particle with light scattering method, using one light emitter and two light receptors, and discriminates pollen from other particles with two factors "scattered light intensity" and "degree of polarization".
Features
- Pollen discrimination and count, by "Degree of Polarization"
This sensor detects the particle with light scattering method, using one light emitter and two light receptors, and discriminates pollen from other particles with two factors "scattered light intensity" and "degree of polarization". Patented. - Built-in Suction Fan
Fan enables constant and larger sampling of air. Pollen count information can be made available without delay by taking advantage of the real time analysis. - Built-in Heater prevents dew
Optical unit and circuit are fully covered with plastic case, and built-in heater keeps the sensor away from dew. - Compact, Light and Low Cost
Specification
| Model | PS2 |
|---|---|
| Detectable particle size | approx. 15μm and larger |
| Supply Voltage | 12VDC |
| Operating Temperature | -10 to 45deg.C |
| Operating Humidity | 20 to 85%rh(No Condensation) |
| Dimensions | 71.4(W) × 76.4(H) × 36.7(D)mm |
| Weight | 120g (approx.) |
