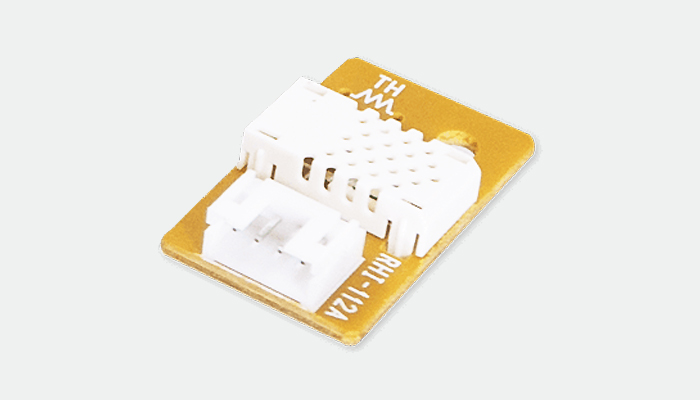

Small Humidity and Temperature Unit RHI-112A
SHINYEI Temperature Humidity Sensor Unit RHI-112A module consists of a reliable and proven humidity sensor and a custom IC designed exclusively for the sensor, which achieved easy operation, high accuracy and cost-effectiveness.
Features
- High Accuracy: ±3%rh (at 25 °C 50%rh)
- Input Voltage: 3.15 - 5.5V
- Low Voltage dependency (include regulator in IC)
- Linear Output Voltage: 0-3V (at 90%rh：3V)
- Low temperature dependency
- Analog or Digital output (I2C)
- Wide humidity range
- Low power consumption(1/4 of the conventional products)
Specification
| Model | RHI-112A |
|---|---|
| Supply Voltage | 3.15～5.5VDC |
| Operating Temperature | 0 to 60 deg.C |
| Operating Humidity | 95%rh or less(No Condensation) |
| Humidity Detecting Range | 10 to 90%rh |
| Accuracy (Humidty) | ±3%rh ( at 25deg.C, 50%rh, Vin=3.15 - 5.5VDC) |
| Humidity Output | Analog(Voltage) |
| Temperature Output | Thermistor |
| Dimensions | 18(W) × 30(H) × 11.6(D)mm |
Applications
- Temperature Humidity Sensor for Copying Machine, Printer
- Temperature Humidity Sensor for Air –conditioner, Humidifier, Dehumidifier
- Temperature Humidity Sensor for HVAC equipment
